Saving the plaque file

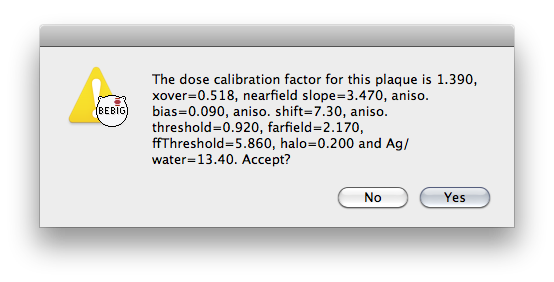

To save the calibrated plaque click the OK button in the Calibration dialog. You will then be asked to review and accept the calibration parameters. Click the Yes button to proceed.

The plaque filename may optionally end with the ".iplq" tag. This is not required but is recommended for compatability with future versions of Plaque Simulator. Plaques should be saved in the Plaques folder in the Plaque Simulator Data folder.

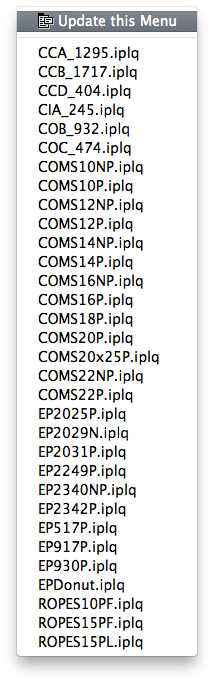

If you saved your new plaque in the Plaque Simulator Data folder it will appear in the Plaque files menu after you update the menu or quit and restart Plaque Simulator. Whenever you need to use this plaque simply select it from the Plaque files menu.
