Profiles

Click images to enarge.

DoseProfilePage1
DoseProfileBEBIG
DoseCalibBEBIG
DoseProfilePage2
DoseProfileDosimetry

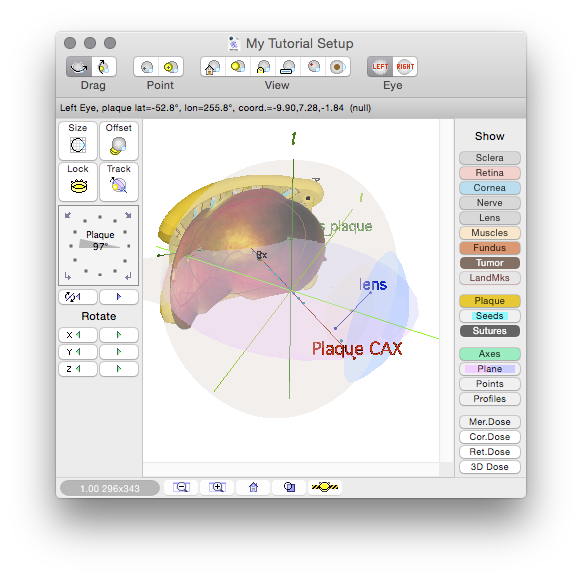

DoseProfileSetup
  • Profiles are cached for each plaque once calculated and can be overlaid on a common plot for comparison. The curves for diferent plaques receive a translucently tinted highlight to help distinguish between plaques.
  • The print buttons at the upper left of the preview window initiate either single document or document group printing.
  • The checkboxes below the document selection buttons at the top of the window indicate which documents will be included in group printing.
  • You can customize a document by clicking the Options button, by double-clicking in the middle of the document window.

The Dose Profile document by default consists of 2 pages.

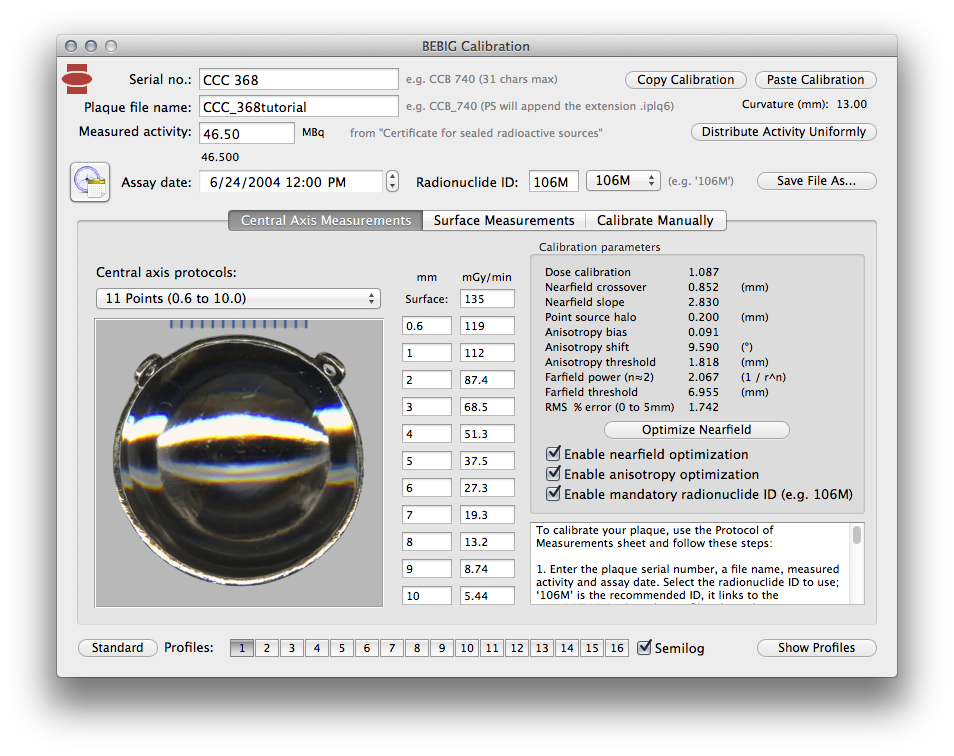

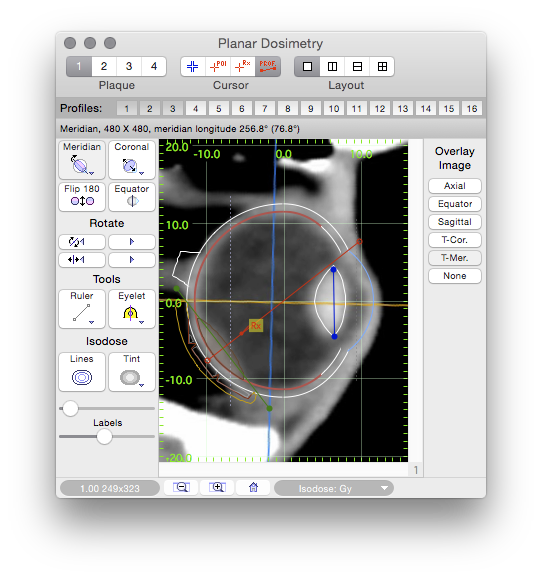

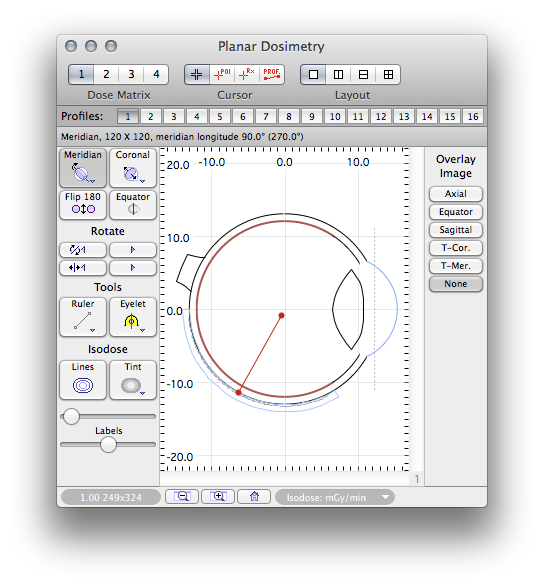

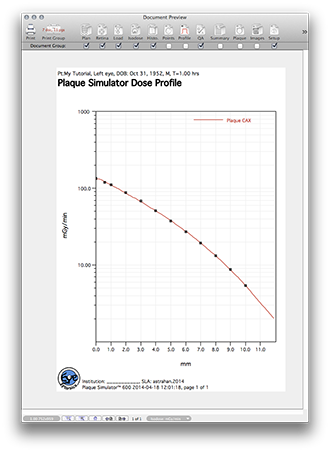

  • Page 1: Up to 16 linear profile lines created in the 2D Dosimetry window are typically plotted on page 1. The examples above illustrate a central axis profile as used in the calibration of BEBIG Ru plaques and 3 custom dose profile lines created in the Dosimetry window for which the settings of the plot axes properties were adjusted manually in the document's preference options.

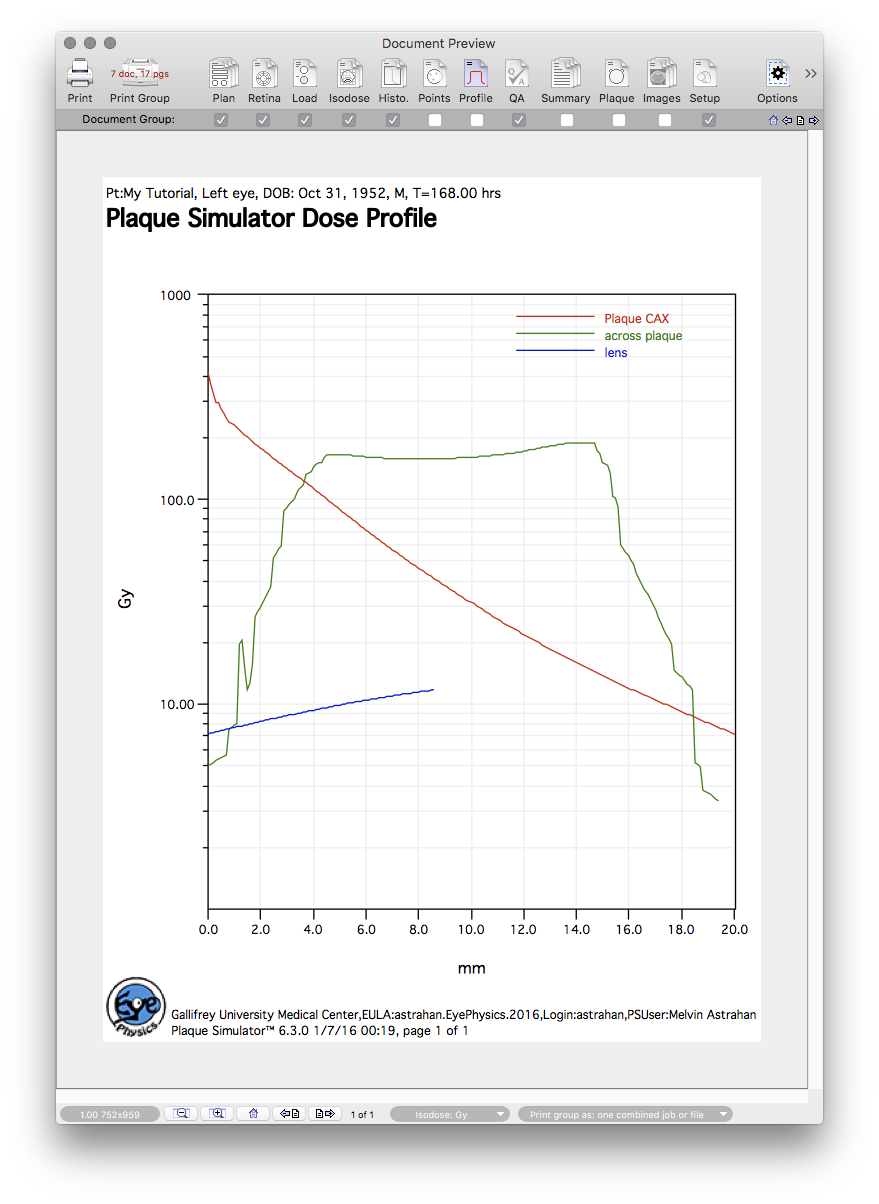

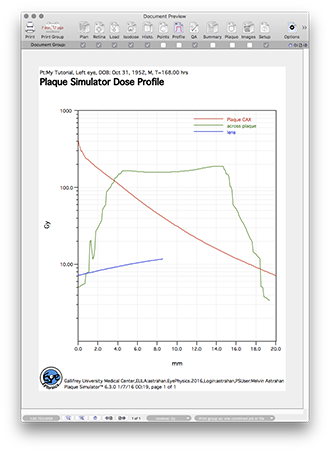

  • Page 2: Up to 16 circumferential profile paths on the inner sclera can be created in the Retinal Diagram window and are typically plotted on page 2.

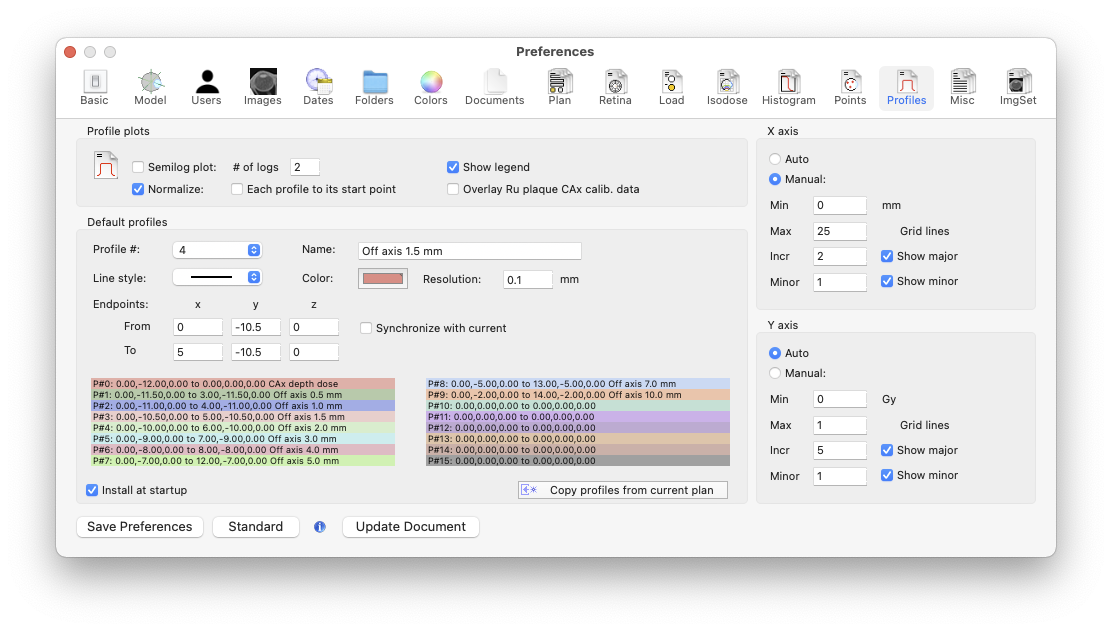

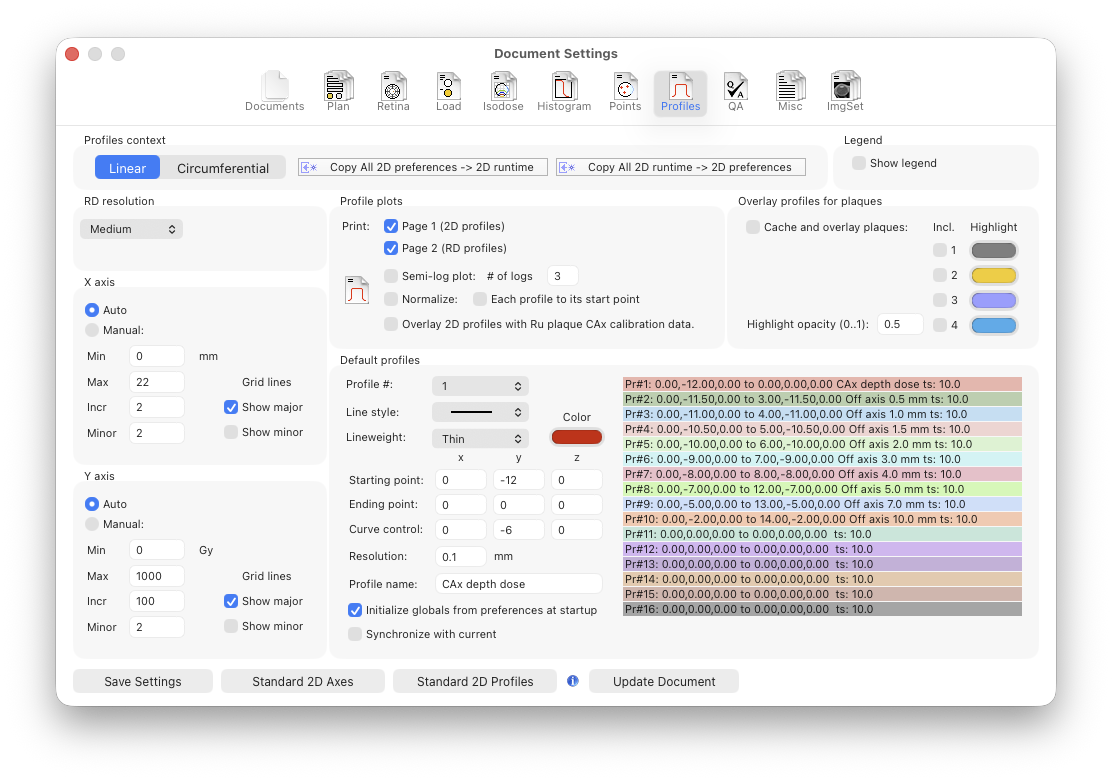

  • Plotting parameters and previewing of linear and circumferential profiles and overlays are provided via the Dose Profiles window. The parameter settings for these plots are initialized based on values entered in the Document Settings Profiles pane illustrated below.

    • DocOptionsProfiles
