Tumor rendering

The tumor appearance menu in the Setup Appearance window offers several options for modeling and displaying the tumor.

TumorMenu
  • Translucent - the tumor surface is rendered translucently.
  • Opaque - the tumor surface is opaque.
  • Edges - the tumor surface is drawn in wireframe.
  • Texture - the fundus photo collage is applied to the tumor surface as an OpenGL texture.

TumorTranslucent

Translucent Dome

TumorOpaque

Opaque Dome

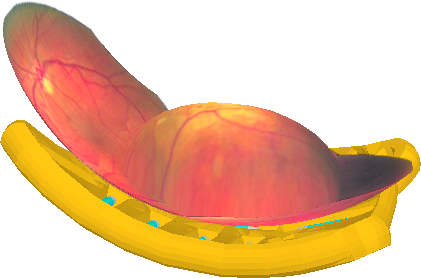

TumorDome

Textured Dome

TumorEdges

Edges (wireframe) Dome

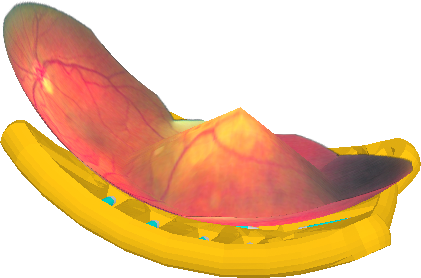

TumorPeak

Textured Peak

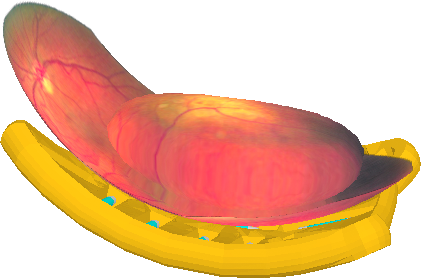

TumorMushroom

Textured Mushroom
