Model #517, 2nd generation manually prototyped, currently in production.
  • Download for Plaque Simulator version 5.39:
  • Download for Plaque Simulator versions >= 5.57:
  • Circular edge, 15 mm diameter
  • 17 slots: 1.0 x 5.0 x 0.8 mm
  • Seeds are glued into slots using cyanocaylate or dental acrylic
  • Can be steam sterilzed in an autoclave using 4 minute flash cycle at time of surgery.
  • 2 anterior suture eyelets
  • Gold plaque & brass suture template set: approx. $1600 (varies with price of gold)

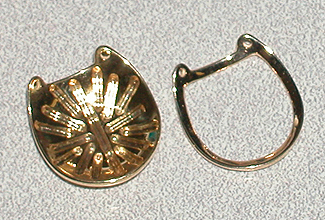

 		Model 9
Model 9

PS version 5.57 supports very detailed 3D models of the Eye Physics plaques and radionuclide seeds. In these captures from the planning system the 3D models are superimposed over scanned pictures of the plaques as they appear in the PS plaque loading window.

 		517a
Translucent 3D model of EP517 superimposed over a scanned picture of the plaque. The empty slot positions into which seeds may be glued are outlined in brown. 		517b
The EP517 fully loaded with seeds displayed in translucent mode. 		517c
The EP517 and seed models displayed in wireframe mode, superimposed over the picture of the plaque.

Model #917, 2nd generation manually prototyped, currently in production.

  • Download for Plaque Simulator:
    For PS version 5.39:
    For PS versions >= 5.57:
  • 16 x 14 mm
  • 17 slots: 1.0 X 5.0 X 0.8 mm
  • Seeds are glued into slots using cyanocaylate or dental acrylic
  • Can be steam sterilzed in an autoclave using 4 minute flash cycle at time of surgery.
  • 2 anterior suture eyelets
  • Notched posterior edge
  • Gold plaque & brass suture template set: approx. $1600 (varies with price of gold)

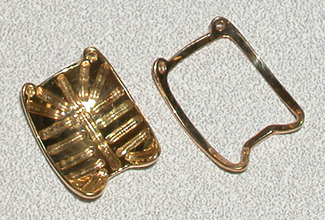

 		Model 9
Model 9
Model 9

PS version 5.57 supports very detailed 3D models of the Eye Physics plaques and radionuclide seeds. In these captures from the planning system the 3D models are superimposed over scanned pictures of the plaques as they appear in the PS plaque loading window.

 		917a
Translucent 3D model of EP917 superimposed over a scanned picture of the plaque. The empty slot positions into which seeds may be glued are outlined in brown. 		917b
The EP917 fully loaded with seeds displayed in translucent mode. 		917c
The EP917 and seed models displayed in wireframe mode, superimposed over the picture of the plaque.

Model #2031 and 2029N, 2nd generation manually prototyped, currently in production.

  • Download for Plaque Simulator:
    For PS version 5.39:
    For PS versions >= 5.57:
  • 20 mm diameter
  • 31 medium seed slots (29 slots in notched version)
  • Seeds are glued into slots using cyanocaylate or dental acrylic
  • Can be steam sterilzed in an autoclave using 4 minute flash cycle at time of surgery.
  • Similar to a COMS 20mm in diameter but only 1.5 mm thick
  • 2 suture eyelets
  • Gold plaque & brass suture template set: approx. $1900 (varies with price of gold)

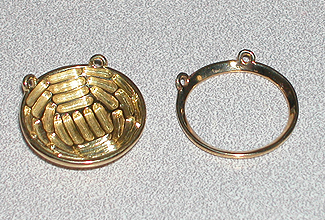

 		Model 2031
Model 2029N
Model 2031vsCOMS20

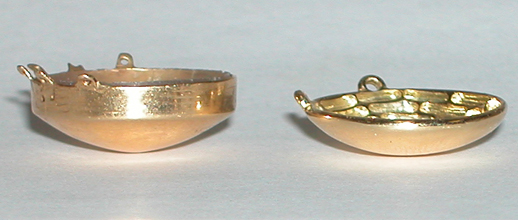

Comparison of EP2031 vs COMS 20 mm

PS version 5.57 supports very detailed 3D models of the Eye Physics plaques and radionuclide seeds. In these captures from the planning system the 3D models are superimposed over scanned pictures of the plaques as they appear in the PS plaque loading window.

 		2342a
Translucent 3D model of EP2031 superimposed over a scanned picture of the plaque. The empty slot positions into which seeds may be glued are outlined in brown. 		2342b
The EP2031 fully loaded with seeds displayed in translucent mode. 		2342c
The EP2031 and seed models displayed in wireframe mode, superimposed over the picture of the plaque.

Models #2342 and 2340N, 2nd generation manually prototyped, currently in production.

  • Download for Plaque Simulator:
    For PS version 5.39:
    For PS versions >= 5.57:
  • 23 mm diameter
  • 42 medium slots (40 slots in notched version)
  • Seeds are glued into slots using cyanocaylate or dental acrylic
  • Can be steam sterilzed in an autoclave using 4 minute flash cycle at time of surgery.
  • 1.5 mm thick
  • 2 suture eyelets
  • Gold plaque & brass suture template set: approx. $2700 (varies with price of gold)
 		Model 2342
Model 2340N

PS version 5.57 supports very detailed 3D models of the Eye Physics plaques and radionuclide seeds. In these captures from the planning system the 3D models are superimposed over scanned pictures of the plaques as they appear in the PS plaque loading window.

 		2342a
Translucent 3D model of EP2342 superimposed over a scanned picture of the plaque. The empty slot positions into which seeds may be glued are outlined in brown. 		2342b
The EP2342 fully loaded with seeds displayed in translucent mode. 		2342c
The EP2342 and seed models displayed in wireframe mode, superimposed over the picture of the plaque.

PS version 5.57 supports very detailed 3D models of the Eye Physics plaques and radionuclide seeds. In these captures from the planning system the 3D models are superimposed over scanned pictures of the plaques as they appear in the PS plaque loading window.

 		2342a
Translucent 3D model of EP2340N superimposed over a scanned picture of the plaque. The empty slot positions into which seeds may be glued are outlined in brown. 		2342b
The EP2340N fully loaded with seeds displayed in translucent mode. 		2342c
The EP2340N and seed models displayed in wireframe mode, superimposed over the picture of the plaque.

Model #2249, 2nd generation manually prototyped, currently in production.

  • Download for Plaque Simulator:
    For PS version 5.39:
    For PS versions >= 5.57:
  • This plaque is ideal for irregularly shaped tumors with very broad basal dimensions and low to medium heights up to 6 mm.
  • 4 interweaved radial slot patterns permit a wide range of tumor shapes to be accomodated.
  • 49 shallow slots: 1.0 X 4.6 X 0.5 mm
  • Plaque is about 1.5 mm thick
  • Seeds are glued into slots using cyanocaylate or dental acrylic
  • Can be steam sterilzed in an autoclave using 4 minute flash cycle at time of surgery.
  • 2 suture eyelets
  • Broad notch to allow placement close to optic nerve
  • Gold plaque & brass suture template set: approx. $2700 (varies with price of gold)

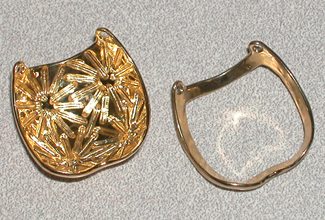

 		Model 2249
Model 2249
Model 2249

PS version 5.57 supports very detailed 3D models of the Eye Physics plaques and radionuclide seeds. In these captures from the planning system the 3D models are superimposed over scanned pictures of the plaques as they appear in the PS plaque loading window.

 		EP2249a
Translucent 3D model of EP2249 superimposed over a scanned picture of the plaque. The empty slot positions into which seeds may be glued are outlined in brown. 		EP2249b
The EP2249 fully loaded with seeds displayed in translucent mode. 		EP2249c
The EP2249 and seed models displayed in wireframe mode, superimposed over the picture of the plaque.

Model #930 (aka #929 and super9), 2nd generation manually prototyped, currently in production.

  • Download for Plaque Simulator:
    For PS version 5.39:
    For PS versions >= 5.57:
  • 30 slots: 1.0 X 7.0 X 0.8 mm
  • Seeds are glued into slots using cyanocaylate or dental acrylic
  • Can be steam sterilzed in an autoclave using 4 minute flash cycle at time of surgery.
  • 2 anterior suture eyelets
  • Deeply notched posterior edge with seed slots wrapping around disc
  • Gold plaque & brass suture template set: approx. $2700 (varies with price of gold)

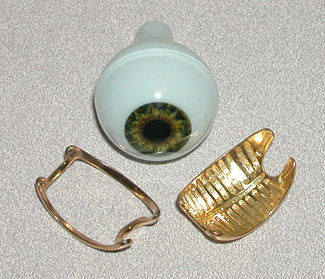

 		Model 930

PS version 5.57 supports very detailed 3D models of the Eye Physics plaques and radionuclide seeds. In these captures from the planning system the 3D models are superimposed over scanned pictures of the plaques as they appear in the PS plaque loading window.

 		EP2249a
Translucent 3D model of EP930 superimposed over a scanned picture of the plaque. The empty slot positions into which seeds may be glued are outlined in brown. 		EP2249b
The EP930 fully loaded with seeds displayed in translucent mode. 		EP2249c
The EP930 and seed models displayed in wireframe mode, superimposed over the picture of the plaque.

Model #2025, 2nd generation manually prototyped, currently in production.

  • Download for Plaque Simulator:
    For PS version 5.39:
    For PS versions >= 5.57:
  • 25 slots: 2.0 X 6.0 X 1.4 mm
  • Seeds are glued into slots using cyanocaylate or dental acrylic
  • Can be steam sterilzed in an autoclave using 4 minute flash cycle at time of surgery.
  • 4 symmetric suture eyelets
  • Plaque can be oriented radially for posterior and equatorial tumors
  • Gold plaque & brass suture template set: approx. $2700 (varies with price of gold)

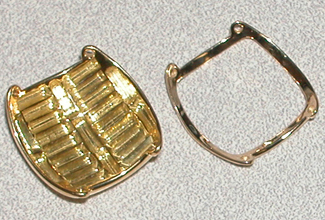

 		Model 9
Model 9
Model 9

PS version 5.57 supports very detailed 3D models of the Eye Physics plaques and radionuclide seeds. In these captures from the planning system the 3D models are superimposed over scanned pictures of the plaques as they appear in the PS plaque loading window.

 		EP2025a
Translucent 3D model of EP2025 superimposed over a scanned picture of the plaque. The empty slot positions into which seeds may be glued are outlined in brown. 		EP2025b
The EP2025 fully loaded with seeds displayed in translucent mode. 		EP2025c
The EP2025 and seed models displayed in wireframe mode, superimposed over the picture of the plaque.

Model #2025 (rotated)

  • Plaque can be oriented circumferentially for extremely anterior tumors
 		Model 9
Model 9

Model "Donut" ring, 2nd generation manually prototyped, currently in production.

  • Download for Plaque Simulator:
    For PS version 5.39:
    For PS versions >= 5.57:
  • For extremely anterior tumors
  • 34 slots: 1.0 X 6.0 X 0.8 mm staggered
  • Seeds are glued into slots using cyanocaylate or dental acrylic
  • Can be steam sterilzed in an autoclave using 4 minute flash cycle at time of surgery.
  • 4 symmetric suture eyelets along posterior edge
  • Gold plaque and brass suture template: approx. $3000 (varies with price of gold)

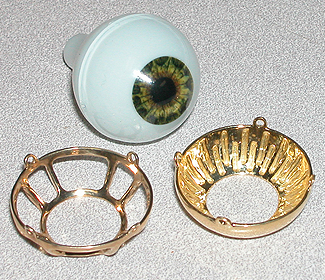

 		Donut prototype
Donut prototype
